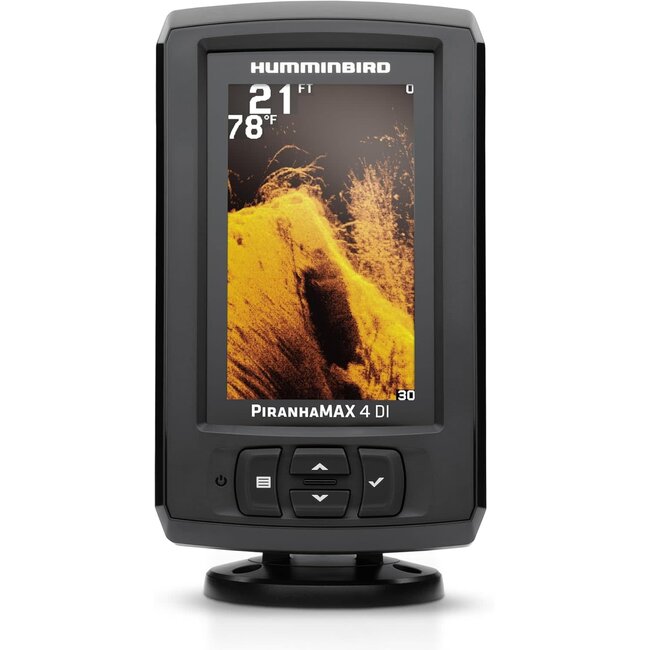

See more under the boat with the Humminbird PiranhaMAX™ 4 DI. A 4.3" color TFT (272×480) and a simplified keypad interface make Down Imaging® and Dual Beam sonar easy to use. Choose a narrow or wide cone to target fish, structure, and contours, and rely on 2.5" target separation for crisp returns. The unit includes a tilt/swivel gimbal mount and the XNT 9 DI T transom transducer with built-in temperature.

Key features & specs

• Down Imaging® + Dual Beam (200/455/455 kHz)

• Coverage: 28°, 16°, & 74° @ −10 dB

• Depth: DI 320 ft; 455 kHz 320 ft; 200 kHz 600 ft

• Power: 300 W RMS / 2400 W peak-to-peak

• Display: 4.3" color TFT, 256 colors, 272H×480V

• Target separation: 2.5"

• Mount: Tilt/pivot gimbal (3.91" W × 7.34" H × 3.62" D)

• Transducer: XNT 9 DI T, transom mount, temp sensor

• Supply: 10.8–20 VDC, ~180 mA draw

• Series: PiranhaMAX • Controls: keypad
